一、Definition

 When it comes to mining mesh, most people are familiar with welded mesh and diamond mesh, but know little about shoulder strap mesh. But in fact, shoulder strap mesh is also a very important anchor support product. So what is shoulder strap mesh?

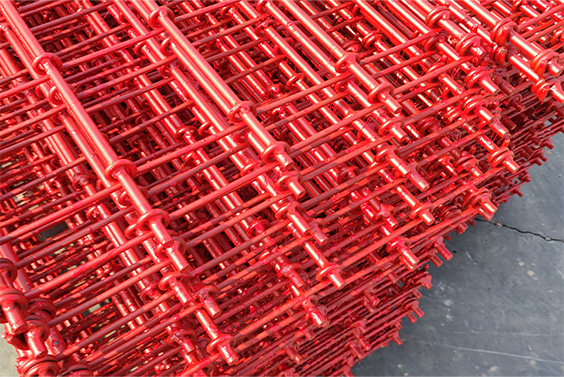

 Osro rod strap is used in mining and tunneling to provide continuous strip support between anchors. Because it is strip-shaped, it can inhibit settlement between anchors and help maintain the integrity of the rock mass. Rock bolts are installed and fastened to the rock surface through Osro straps. Osro straps can replace steel plates and formed plates, such as "W" straps.

 二、 Application and Use

 Osro straps are held in place on the rock surface. Rock bolts are installed through the holes between the wires and tightened. Washers/bearing plates must be used to ensure the bolts do not pass through the gaps between the wires. Osro straps can be used with shotcrete and/or thin-shot lining to provide greater area support and protect the rock surface from weathering.

 三、Product Advantages

 1. A large area of cracked rock can be covered in the air.

 2. Can improve load distribution between roof bolts.

 3. A variety of lengths and widths are available and can be customized according to your requirements.

 4. Accommodates all bolt spacing patterns.

 5. Large support areas can be created by overlapping sheet edges.

 6. Since longitudinal bars are able to pass through ring sleepers, they allow greater deformation and load distribution.

 7. Corrosion protection can be provided by hot dip galvanizing.

 About Jiufu

Jiufu specializes in the production of mining support equipment products. Our advantageous products include self-drilling, hollow anchor rods, pipe seam anchor rods, welded mesh, diamond mesh, U-shaped steel, etc. Jiufu is committed to providing the best quality products at the most competitive prices in the safest working environment.
